Since many users might not be familiar with SFP fiber networking gear, this is a brief overview with some recommendations for selecting the appropriate parts.
SFP (Small Form-factor Pluggable) is a pluggable optical interface widely used in enterprise networks and high-end HiFi audio systems. It enables high-speed transmission, low interference, and electrical isolation, allowing your audio system to achieve a cleaner and more stable network signal.
I. Eversolo Devices Supporting SFP
Currently, Eversolo offers two devices equipped with SFP fibre optic network interfaces
- DMP-A10 (Digital Media Player and Decoder)
- T8 (Pure Digital Turntable)

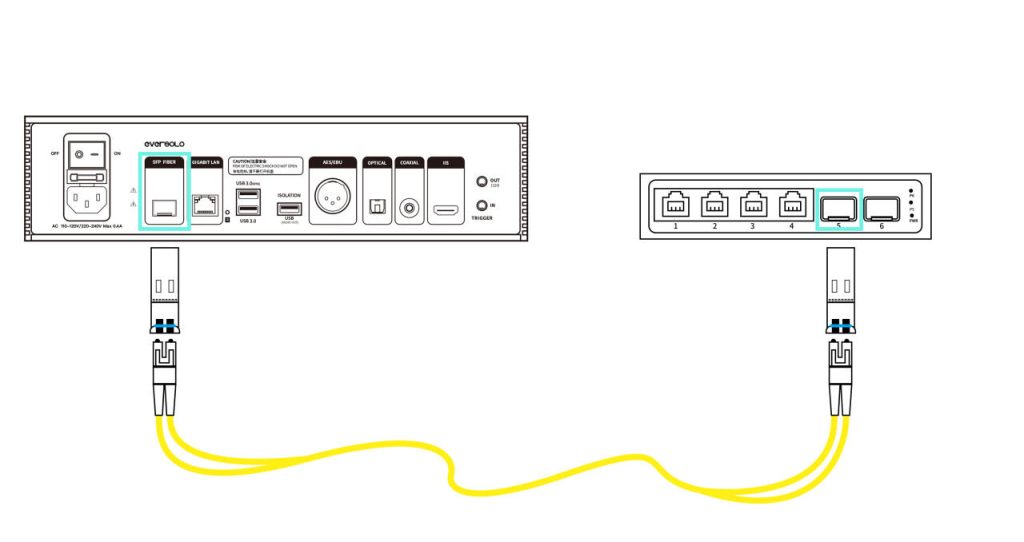

II. What You Need for SFP Connection
To use the SFP fiber network port on the Eversolo T8, you will need:
- Two SFP optical modules (recommended: same brand, same model)
- One fiber optic patch cable (choose connector depending on the port)
- A network device with an SFP slot, such as a switch, router, or media converter
With these components, you can build a high-quality fiber link and achieve complete electrical isolation between your network and the T8.

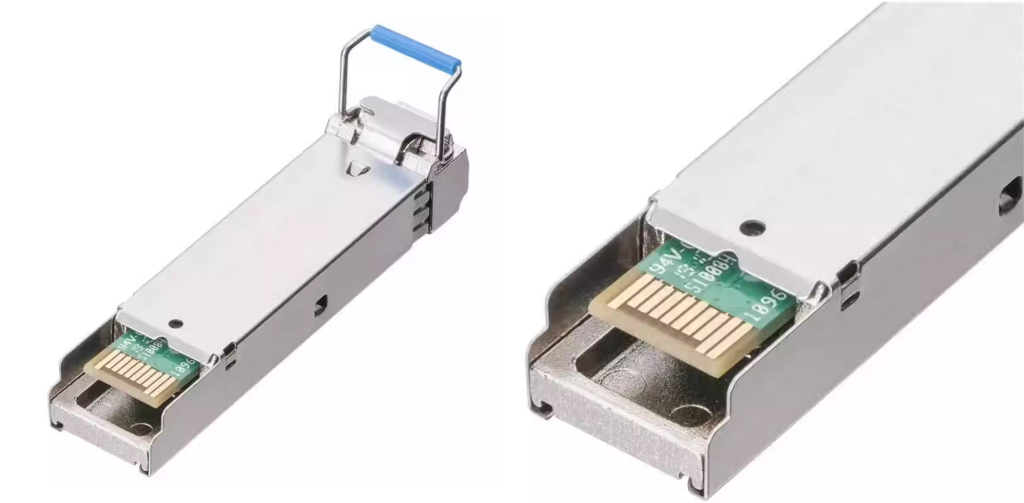

III. SFP Optical Modules
SFP modules come in a variety of forms, including Gigabit (SFP), 10-Gigabit (SFP+), and speedier models. They also differ by single-fiber/dual-fiber and single-mode/multi-mode.
For the Eversolo T8, only the following types are supported:
- Speed: Gigabit SFP
- Fiber Mode: Single Mode
- Transmission: Single-fiber or Dual-fiber
For best compatibility and signal stability, we recommend using a matched pair of identical brand and model modules.

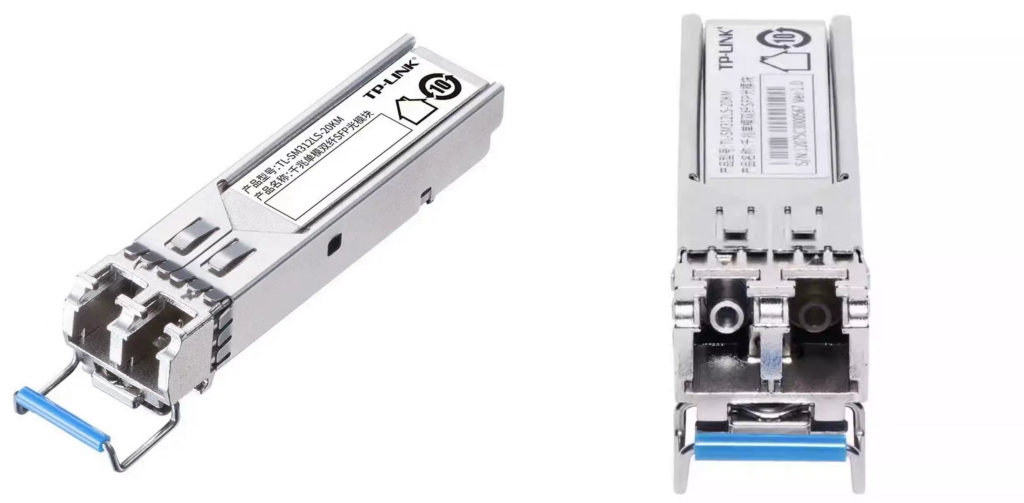

Recommended Models
- StarTech SFPGLCLHSMST0 (dual-fiber, single-mode, LC duplex)
- 10Gtek ASF13-24-10 (dual-fiber, single-mode, LC duplex)
- TP-Link TL-SM311LSA-2KM (single-fiber, single-mode, LC simplex)
- TP-Link TL-SM312LS-40KM (dual-fiber, single-mode, LC duplex)
- HUAWEI 1.25G-1310nm-40KM-SM-ESFP (dual-fiber, single-mode, LC duplex)

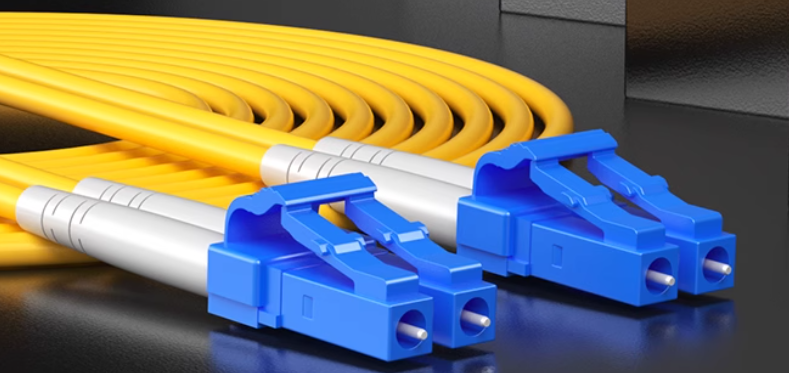

IV. Fiber Optic Patch Cables
Fiber optic patch cables connect the two SFP modules and carry the optical signal between them.
When choosing a patch cable, pay attention to:
- Matching the fiber type (single-mode / multi-mode)
- Matching the connector type (LC / SC / FC, etc.)
1. Fiber Types & Color Codes
| Type | Model | Color | Description |
| Multi-mode | OM1、OM2 | Orange | Suitable for short distances |
| Multi-mode | OM3、OM4 | Aqua | Medium-distance, high-speed |
| Multi-mode | OM5 | Green | New-generation high-speed multi-mode |
| Single-mode | OS1、OS2 | Yellow | Long-distance, low-loss transmission |

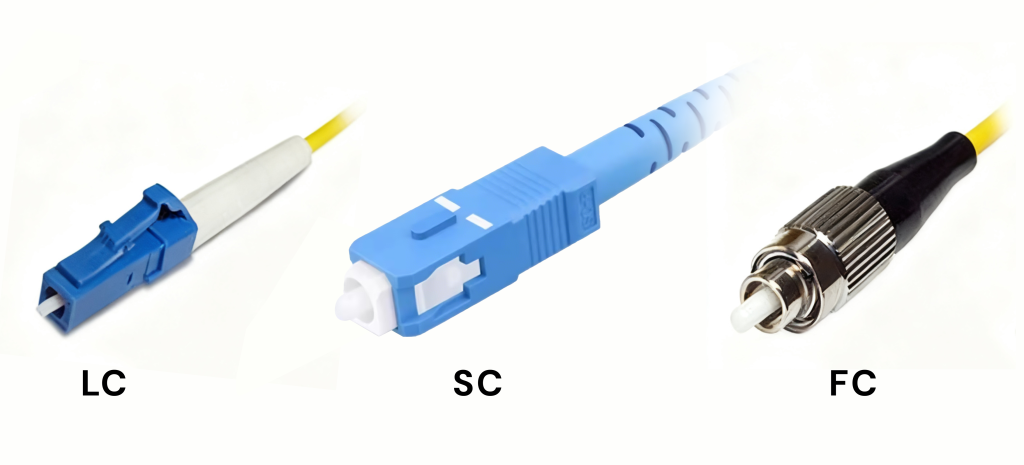

2. Connector Types
Common combinations:
- LC–LC (common on smaller devices)
- SC–SC (more common on older equipment)
- LC–SC (for cross-interface connections)
Recommendation
Multi-mode patch cables can work with both single-mode and multi-mode modules, but single-mode fiber is normally required for single-mode modules. For the Eversolo T8, we recommend using: OS2 single-mode LC fiber patch cables (1–30 meters), single-fiber or dual-fiber, paired with the recommended SFP modules above.
V. SFP-Compatible Network Devices
To use the SFP connection with the Eversolo T8, you can choose from the following types of devices:
- Switches with SFP slots
- Routers with SFP slots
- Fiber media converters
These devices allow electrically isolated networking for the T8 by bridging your home or office network to the fiber link.
Recommended Devices
- Switches
- Hilink SR-S25G2206F-N
- Hilink SR-S25G1218FP
- Netcore GS10
- Zyxel XGS1250-12
- Fiber media converters
- TP-Link MC220L
- Routers
- No specific recommendations at this time — enterprise or high-end routers with SFP slots are suitable.
VI. Important Notes
- Ensure SFP modules are fully inserted into the T8 and your network device. Partially inserted modules may cause recognition issues or unstable connections.
- If you are using dual-fiber cables, the two ends must be cross-connected:
- For example, if T8 uses A–B on its module, the network device should be connected B–A to ensure correct TX/RX direction.
VII. Conclusion
The Eversolo T8’s SFP fiber network connection is a cutting-edge feature intended for high-end audio consumers.
Through fiber transmission, you gain electrical isolation, lower noise, and higher stability, effectively reducing network interference and delivering a cleaner background with greater detail.
By choosing the right SFP modules, patch cables, and SFP-compatible devices, your T8 can perform at its full potential—giving you a truly quiet and pristine network environment for digital audio playback.
